Teviso Radiation Sensor BG51-OEM

New -25 %

Teviso Radiation Sensor BG51-OEM

Stock: In Stock
Model: BG51-OEM
Weight: 100.00g
SKU: Teviso-BG51-OEM
MPN: BG51

Products Sold: 15

Product Views: 4304

Based on 0 reviews. - Write a review

₹14999.00

₹19999.00

Available Options

Pre-order

Pre-order (Available within 15days)

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Description
Reviews

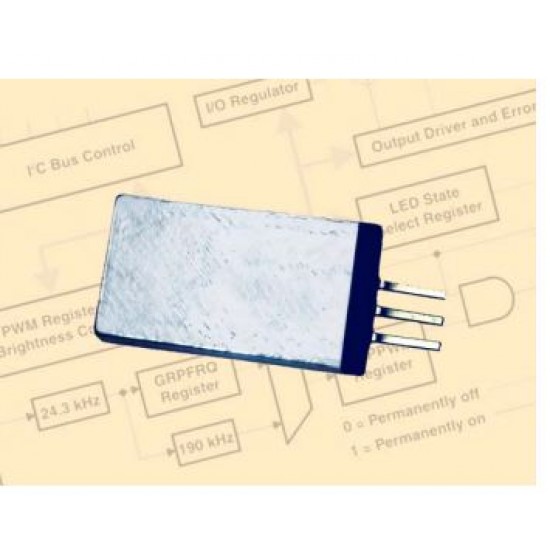

The BG51-OEM radiation sensor is a scaled-down version of the BG51. The electrical specifications, however, are identical. The BG51-OEM is capable of detecting beta radiation (electrons), gamma radiation (photons) and X-rays. The BG51-OEM sensor is primarily intended for applications where weight and dimensions are critical (cube satellites). Features and Benefits  Detects beta and gamma radiation and X-rays  Ultra low power requirement (25µA)  55% space savings, 40% weight savings  Detector sensitivity: 5 cpm/µSv/h  High immunity to RF and electrostatic fields  Linear response over wide temperature range (-30°C to 60°C)  Swiss made Application Areas  Cube Satellites  Equipment for detecting radioactivity in medical environment  Gamma detector to detect illicit nuclear material

The BG51-OEM sensor is primarily intended for applications where weight and dimensions are critical (cube satellites). For standard applications the BG51 should be the first choice. The BG51 is equipped with a housing to protect the sensitive sensor window from injuries that could affect the functionality of the sensor.

Absolute Maximum Ratings Supply voltage, VCC to GND 18.0VOutput short-circuit current continuous Storage temperature range -65°C to 100°C Electrical characteristics Unless otherwise indicated specified at: VCC = 4.0V, TA = 25°C Measurement range of dose rate 0.1 µSv/h to 100 mSv/h Pulse count rate 5 cpm ± 15% for 1 µSv/h radiation dose rate Energy response 70 keV to above 2 MeV Output pulse level Equal to supply voltage (positive going) Output pulse width 50 μs to 200 μs (LOWHIGHLOW) Supply voltage range, VCC 2.5V to 12.0V Supply current, IS 25µA TYP Operating temperature range -30°C to 60°C

Tags: BG51 , BG-51 , Radiation Sensor , Teviso , BG51 OEM , Teviso BG-51 ,
